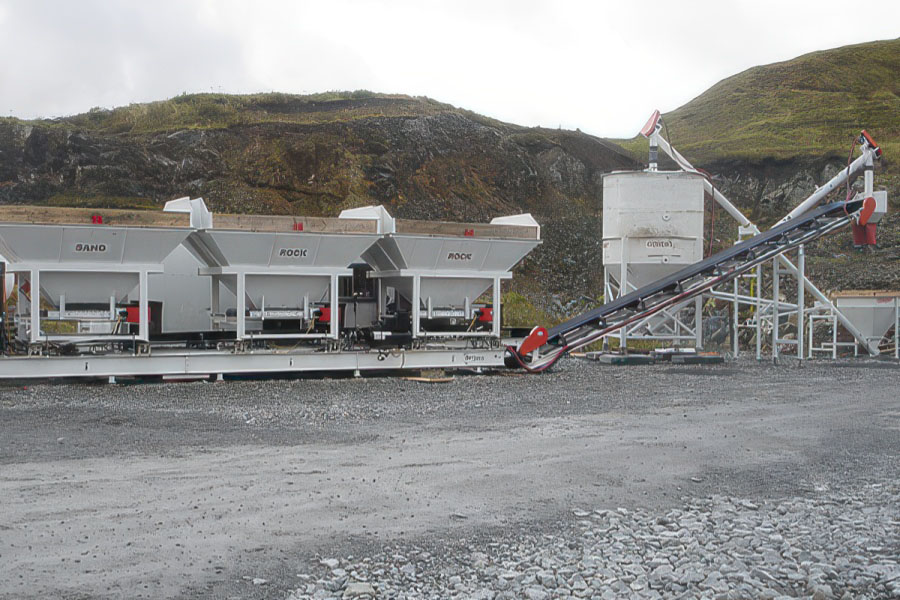

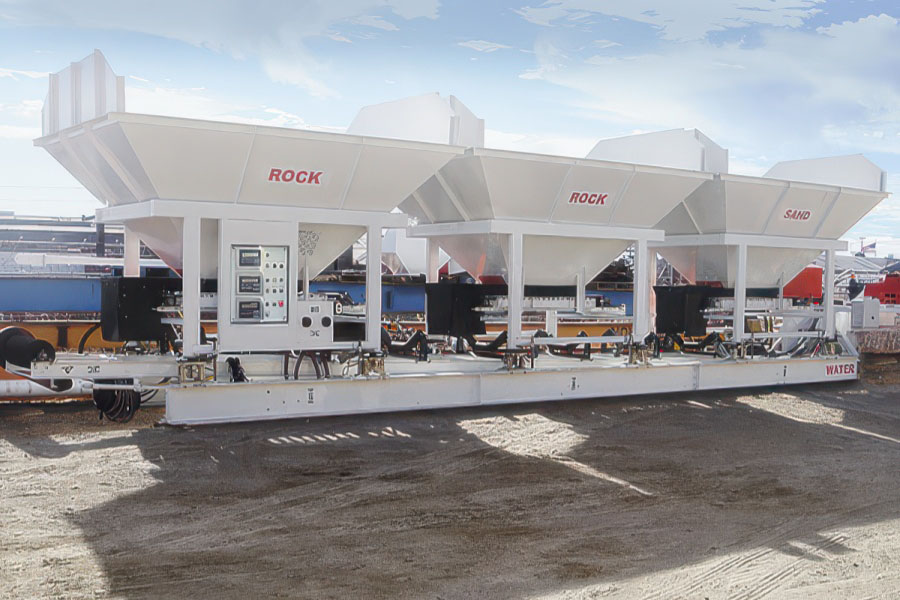

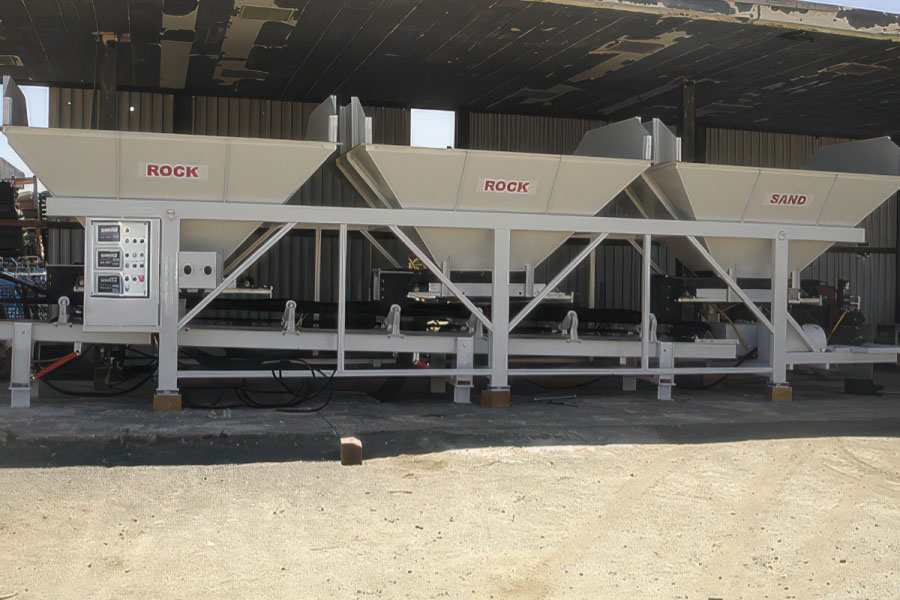

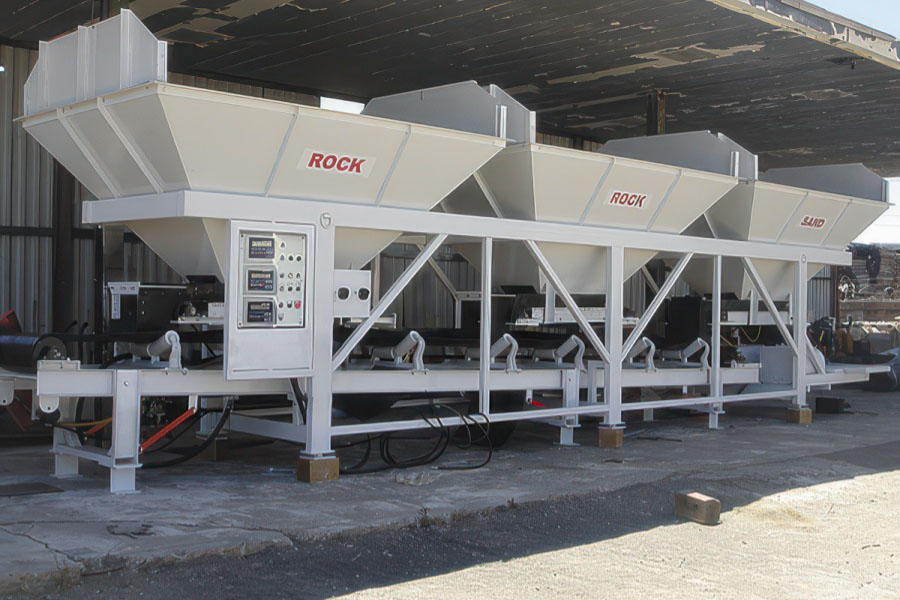

N-3300 Stationary Batch Plant

Features

• 36-yard capacity
• 100 yards per hour production rate
• Electric or diesel power
• 60-ton cement silo
• Water meter
• Scales with weigh ticket printer
• 1-year warranty
• Setup and training included

Options

1. Diesel Power
   • Diesel option requires an additional 120 V AC to power batch controls and printer.
   • N-3300 Batch Plant 6-cylinder diesel option, refurbished engine with warranty – $8,200
2. Water Meter
   • All plants come standard with dual manual dial meter (accuracy ±2%).
   • Badger manual meter option, accuracy ¼% – $4,880
3. Water Pump
   • To add a water pump to one of our stationary plants, you will need 60 GPM at 75 PSI – $1,500
4. Remote Batch Controls
   • Must have electronic water meter for this option.
   • Place your remote batch controls and ticket printer up to 75 feet away from the plant – $2,800 (plus the cost of electronic water meter)
5. Power Inverter
   • If your plant is diesel powered, you will need 120 V AC to power batch controls and printer.
   • If not available, this can be achieved with a 1,000-watt heavy duty power inverter which converts 12 V DC to 120 V AC – $1,150
6. Steel Plates
   • (18″ x 18″ x ½″) – $1,800
   • A last resort option if a concrete pad is not available to set the plant on.
   • Note: It is not recommended to set your plant and silo without a concrete pad; the ground may shift and you can damage your load cells. American Mixers & Plants is not liable for damage to load cells from sitting the plant on the ground.​
7. Reverse Air Load-Out Duct System
   • Required in CA, TX, and similar jurisdictions for concrete batch plants to control dust emissions.​
   • Three-sided enclosure for the rear of the truck; removes dust from the air as you load; 5,000 SCFM into dual filter bag house – $16,750​
8. Bag Loading Auger
   • Used to load a low profile 40-ton cement silo where pneumatic cement is not available – $9,200
9. Plant Ticket Printer
   • Premium ticket printer works directly from the scales on the batch plant.
   • Gives the discharged weight of rock, sand and cement only, printed on a weigh ticket or delivery ticket – $1,250

Specifications

Specifications may change without notice

• Capacity: 36 cubic yards
• Production: 100 yards per hour
• Rock 1: 12 cubic yards
• Rock 2: 12 cubic yards
• Sand: 12 cubic yards
• Power source: 75 HP electric
• Optional: 6-cylinder diesel
• Hydraulic system flow: 70 GPM close center system (all functions of the plant are hydraulically controlled)​
• Hydraulic system pressure: 2,000 PSI+ (all functions have variable speed)​
• Hydraulic reservoir: 100 gallons
• Hydraulic system has start relief
• Electrical: 480 volts, 3-phase main system, current 100 amps
• Manual water meters: 60 GPM each
• Maximum water pressure: 75 PSI
• Water line discharge into mixer
• Length (plant only): 50′
• Length with hitch mounted: 58′
• Length (plant with loading conveyor): 96′
• Plant output loading height: 13′
• Bin loading length: 12′
• Bin width: 8′
• Bin extension wings (bolt-on): 24″ tall
• Bin material guides: 2″ x 12″ (wood)
• Bins have adjustable material output doors
• Bin output conveyors with roller table: 26″ wide x 75″ long
• Collection conveyor: 30″ wide x 20′ long
• Conveyor belting: 3/8″ 2-ply
• Plant main frame rails have 12 adjustable legs
• 2 HP compressor – electric or hydraulic
• Approximate weight: 21,000 lbs
