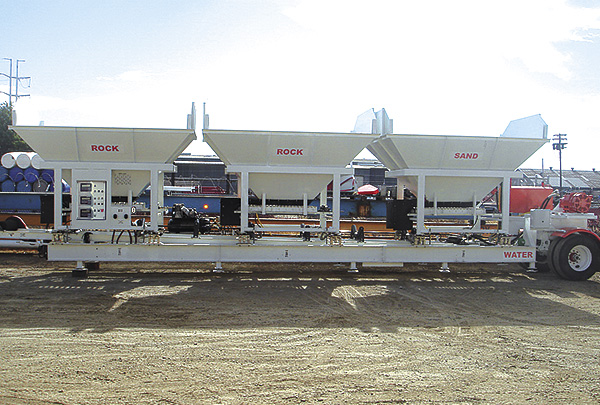

N-3300 Portable Concrete Batch Plant

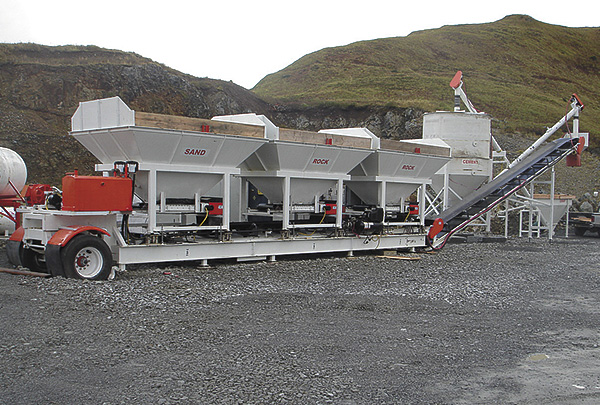

More Plant Photos

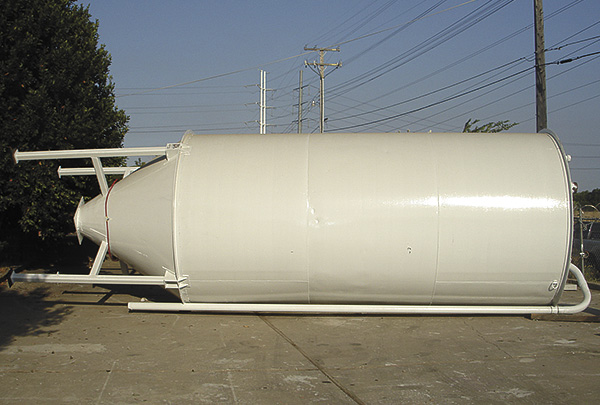

Silos and Dust House

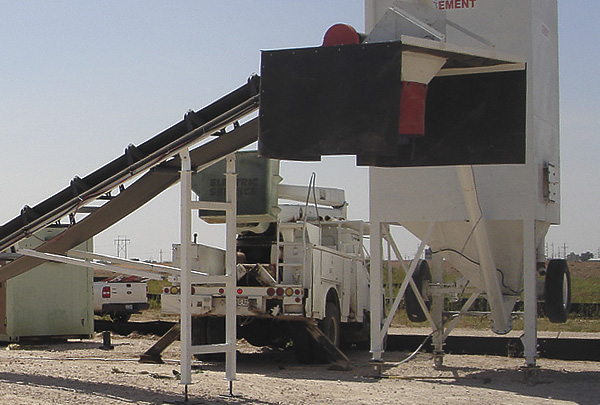

Reverse Air Loadout Dust System

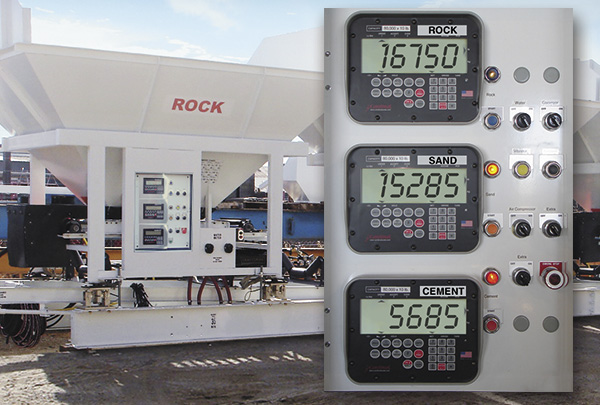

Simple Batch Controls

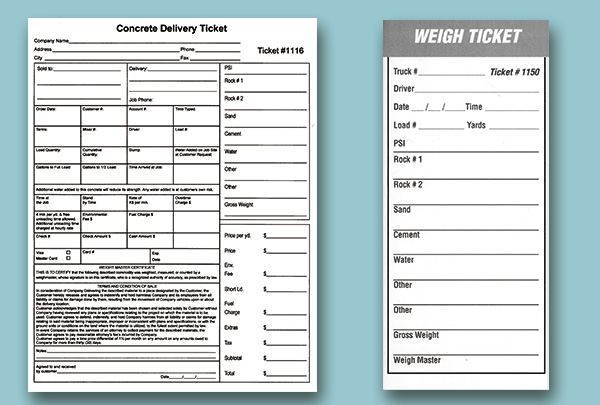

Delivery Ticket vs. Weigh Ticket

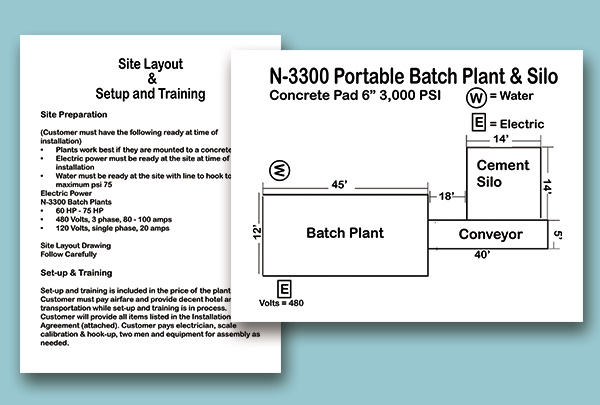

Site Layout & Preparation

Features

1. 36 Yards Capacity


2. 100 Yards per Hour


3. Electric or Diesel


4. Portable 60 Ton Cement Silo


5. Water Meter


6. Scales with Weigh Ticket


7. Detachable Hitch


8. 1 Year Warranty


9. Setup & Training


10. In Stock


Options

1. DIESEL POWER
   (All plants come standard with electric 60 - 75HP powered at 480 volts. Diesel option needs an additional 120v AC to power batch controls and printer)
   N-3300 Batch Plant 6 Cylinder Diesel Option, Refurbished Engine with Warranty - $5,200


2. WATER METER
   (All plants come standard with dual Manual Dial Meter, accuracy +2%)
   Badger Manual Meter Option, Accuracy ¼% - $ 1,250.00
   Electronic Meter Option, Accuracy ¼% - $1,400.00


3. WATER PUMP
   (The N-2200 Portable and N-3300 Portable come standard with a hydraulic powered water pump)
   To add a water pump to one of our stationary plants, you will need 60 GPM at 75 psi - $1,500


4. REMOTE BATCH CONTROLS
   (Must have electronic water meter for this option)
   Place your remote batch controls and ticket printer up to 75 feet away from the plant - $1,800 (plus the cost of electronic water meter)

5. POWER INVERTER
   If your plant is diesel powered, you will need 120V AC to power batch controls and printer. If not available, this can be achieved with a 1000 watt Heavy Duty Power Inverter which converts 12V DC to 120V AC - $1,150


6. STEEL PLATES
   (18” x 18” x ½”) - $750
   A last resort option if concrete pad is not available to set plant on
   (NOTE: It is not recommended to set your plant and silo up without a concrete pad; the ground may shift and you can damage your load cells. American Mixers & Plants is not liable for damage to load cells from sitting the plant on the ground)


7. REVERSE AIR LOAD-OUT DUCT SYSTEM
   (Required in CA, TX, and coming soon near you) 3 Sided enclosure for the rear of the truck, Removes dust from the air as you load, 5000 SCFM into dual filter bag house
   - $12,500


8. BAG LOADING AUGER
   Used to load a low profile 40 ton cement silo where pneumatic cement is not available - $9,200


9. PLANT TICKET PRINTER
   Premium ticket printer works directly from the scales on the batch plant, gives the discharged weight of rock, sand and cement only, printed on a weigh ticket or delivery ticket - $1,250

Specifications

Specifications may change without notice

1. Capacity: 36 Cubic Yards

2. Production: 100 Yards per Hour

3. Rock 1: 12 Cubic Yards

4. Rock 2: 12 Cubic Yards

5. Sand: 12 Cubic Yards

6. Power Source: 75 HP Electric

7. Optional: 6 Cylinder Diesel

8. Hydraulic System: 45 G.P.M. Close Center System (All functions of the plant are hydraulically controlled)

9. Hydraulic System: Pressure 2000 PSI + (All functions have variable speed)

10. Hydraulic Reservoir: 100 Gallons

11. Hydraulic system has start felief

12. 480 Volts, 3 Phase main system, current 100 Amps

13. 2 Manual Dial Water Meters, 23 G.P.M. each

14. Maximum water pressure 75 PSI

15. Water line discharge into mixer

16. Length (plant only): 50’ Length with Hitch Mounted:58’

17. Length (plant only with loading conveyor): 96’

18. Plant Output Loading Height: 13’

19. Bin Loading Length: 12’

20. Bin Width: 8’

21. Bin Extension Wings (bolt on): 24” Tall

22. Bin Material Guides: 2” x 12” (wood)

23. Bins have adjustable material output doors

24. Bin’s Output Conveyors with roller table: 26” wide x 75” long

25. Collection Conveyor: 30” wide x 20’ long

26. Conveyor Belting: 3/8” 2-ply

27. Plant main frame rails have 12 adjustable legs

28. Sand Bin Vibrator

29. 2HP Compressor – Electric or Hydraulic

30. Detachable Hitch with King Pin

31. 20-30 Gallon Fuel Tank if Needde

32. Bin Scale Lockouts

33. 20K Tow Axel – No Brakes

34. Maximum Speed 45 mph

35. No Running Lights

36. Approximate Weight 21,000 lbs
